SA 280 Sash Assembly Station
Standard Features
Different series of different sizes of doors / windows, all used tilt and turn accessories on the surface of the frame without using the meter and pen, adjustable to different profiles, without the need to form and pattern, enables serial and high-quality installation in a standard way

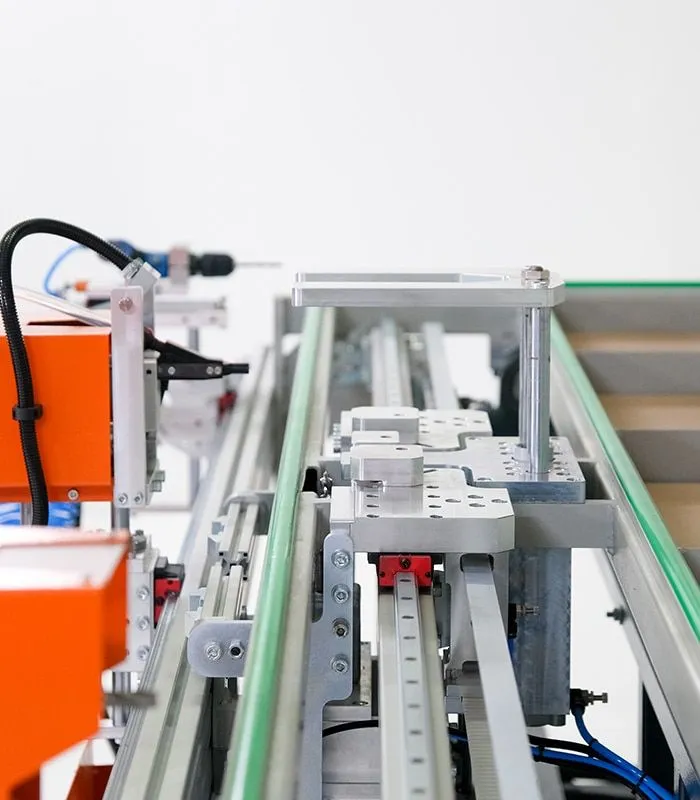

- Sash assembly table
- Automatic centering system of the sash
- Automatic measurement system for espagnolette and scissors

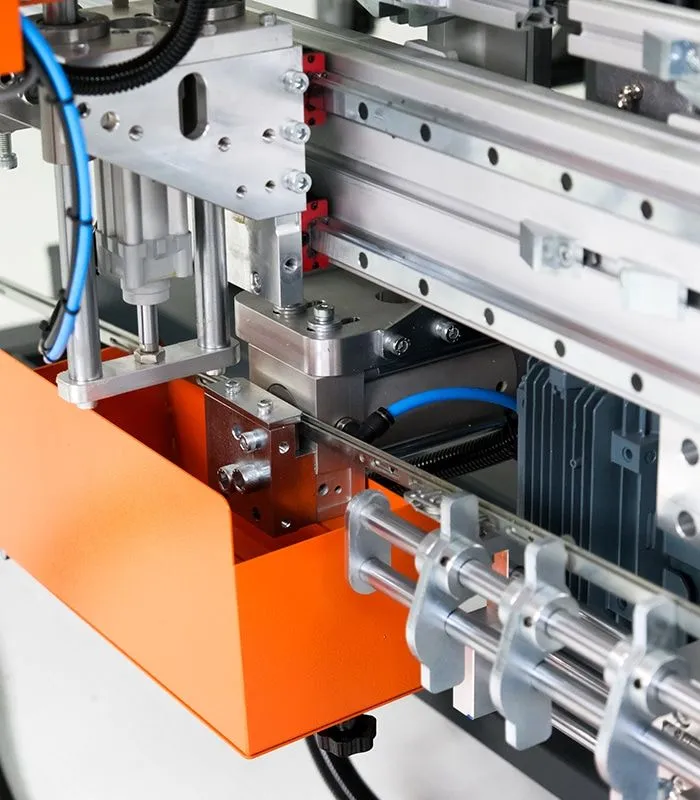

- Cutting punch for espagnolette and scissors

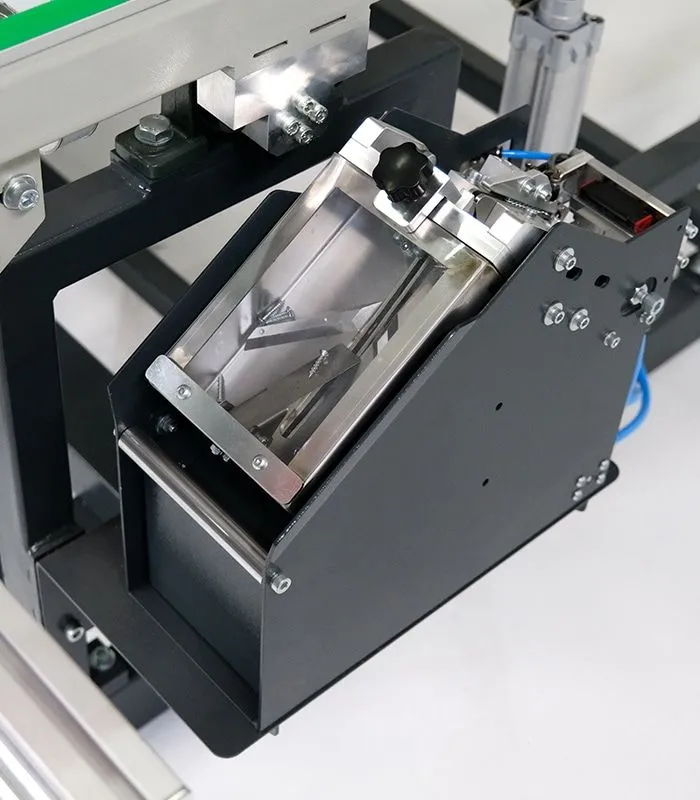

- The automatic screwdriver, automatic screw feeding

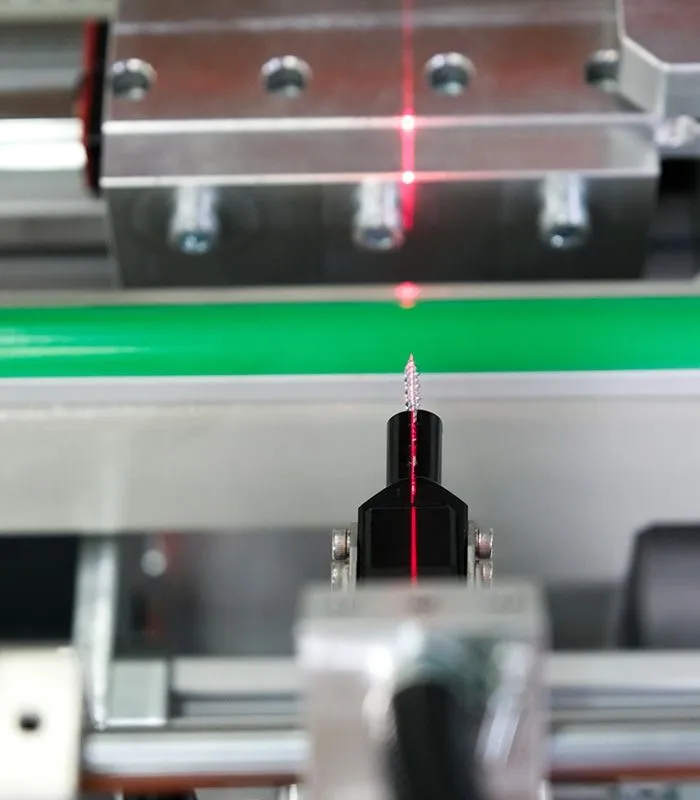

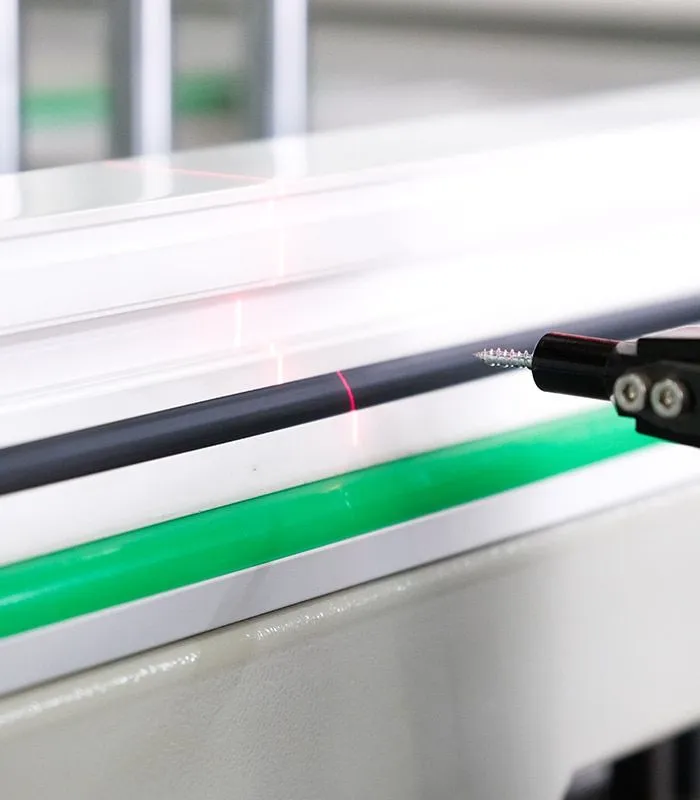

- Laser screw alignment system
- Triple drilling holes for the handle

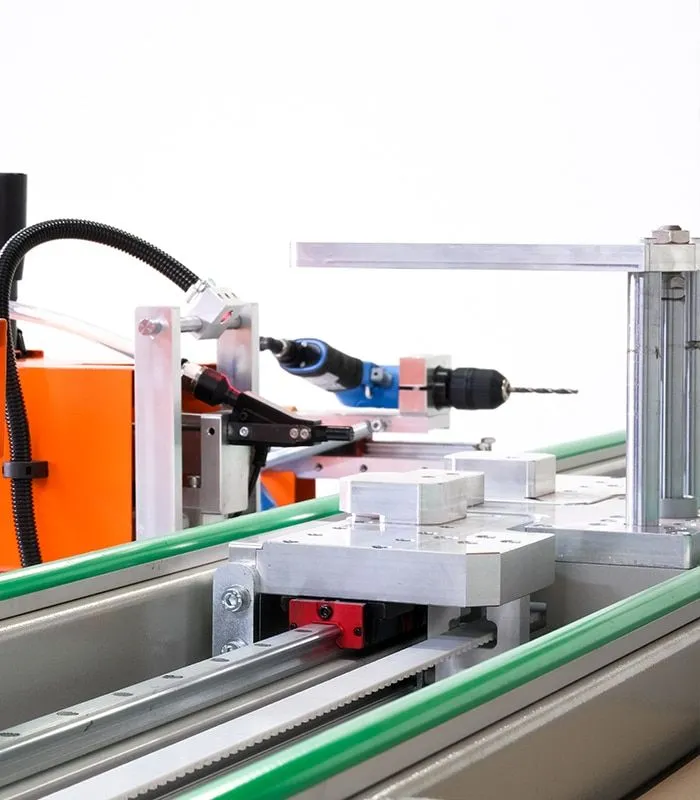

- Semi automatic adjustable hinge drilling and manual hinge drilling

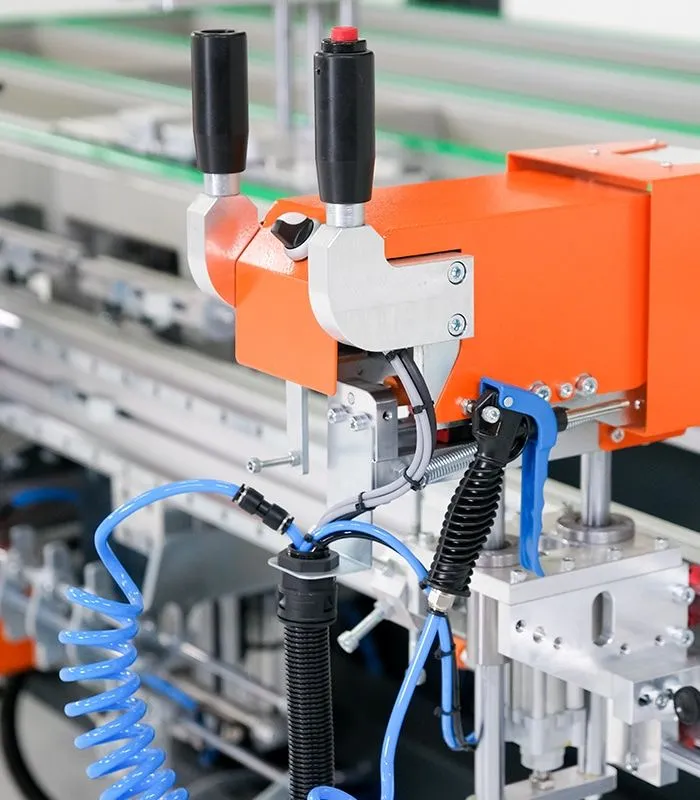

- Screwing group

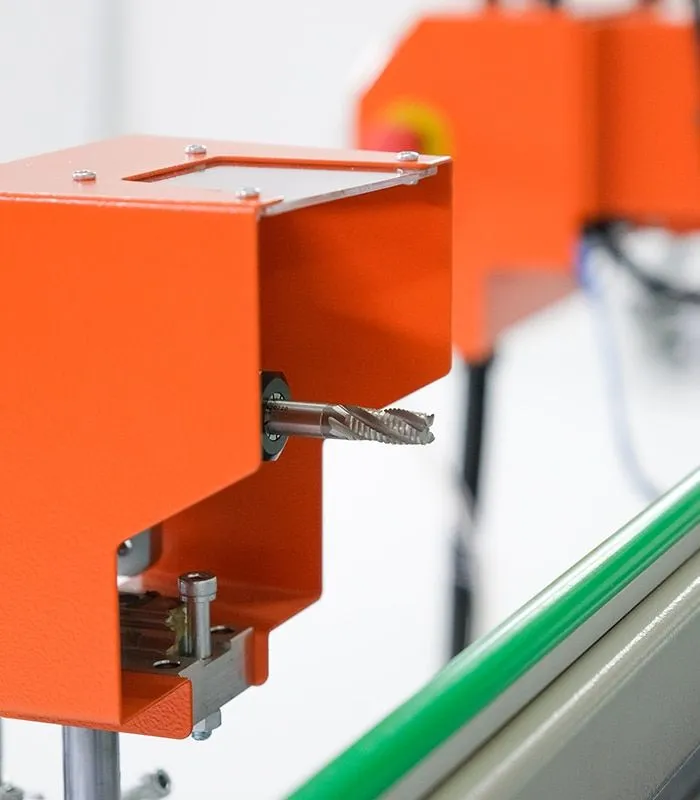

- Milling channel for espagnolette
- Shelf for accessories
Technical Informations
| Total Power | : 3 kW |
| Air Pressure | : 6-8 bar |
| Air Consumption | : 245 lt./min. |
| Minimum window width | : 330 mm |
| Maximum window width | : 2.500 mm |
| Machine Height | : 2.030 mm |
| Machine Length | : 3.255 mm |
| Machine Width | : 2.010 mm |
| Machine Weight | : 615 kg |
