SMC 320 Profile Machining & Center for PVC & Aluminum
SCHTEC SMC 320: CNC for PVC & aluminum, 0.1° saw precision, 30°-150° cuts, synchronized drilling & milling. Supports 6.5m profiles, 11 at once. Ideal for medium production.
SMC 320 Technical Specifications
| Voltage | 400 V, 3 Ph, 50-60 Hz |
| Power Consumption | 10.8 kW, 27 A |
| Max. Profile Height | 130 mm (up to 170 mm for cutting only) |
| Min. Profile Height | 40 mm |
| Max. Profile Width | 130 mm |
| Min. Profile Width | 35 mm |
| Max. Profile Bar Length | 6,500 mm |
| Max. Process Length for Profile | 6,000 mm |
| Maximum Cutting Length | 3,500 mm (can be increased if needed) |
| Minimum Cutting Length | 370 mm |
| Minimum Process Length for Profile | 900 mm |

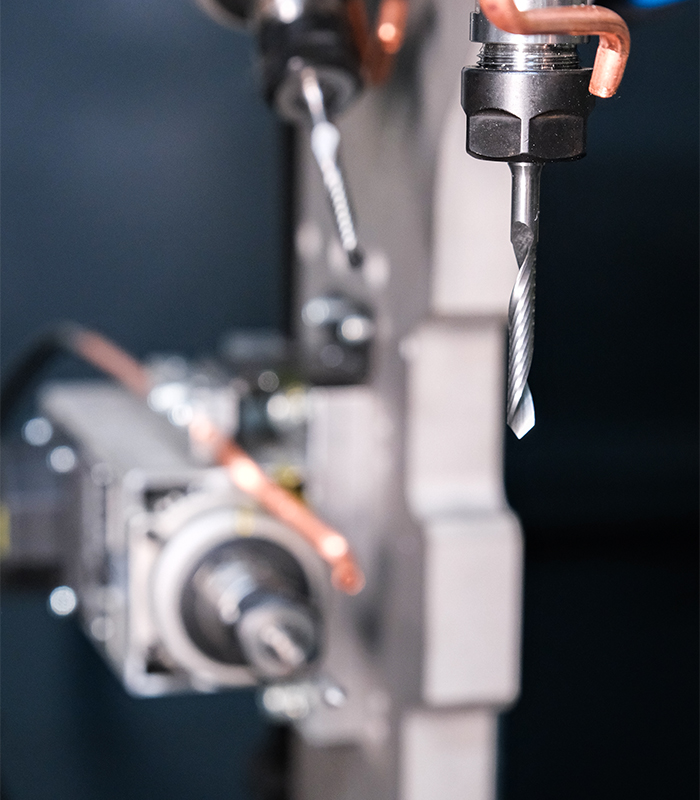

| Tool Diameter | 6 mm Carbide Fast Tool |
| Tool RPM | 18,000 rpm |
| Max. Axes Speed (Processing) | 50 m/min |
| Max. Axes Speed (Saw) | 100 °/sec |
| Max. Axes Speed (Carrier) | 40 m/min |
| Air Pressure | 6-8 bar |
| Air Consumption | 950 l/min |
| Machine Height | 2,200 mm |
| Machine Width | 3,450 mm |
| Machine Length | 15,500 mm |
| Machine Weight | 3,750 kg |
| Standard Tool Count | 7 high-speed air-cooled spindles |
SMC 320 Profile Machining and Cutting Center
Standard Features
- This 3 axes controlled CNC processing center can do all operations on PVC profiles such as cutting, marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes etc.
- All angles between 30 – 150 degrees are cut with 0.1 degree accuracy servo axis controlled 500 mm diameter saw.
- Routing and cutting processes are synchronized to run at the same time

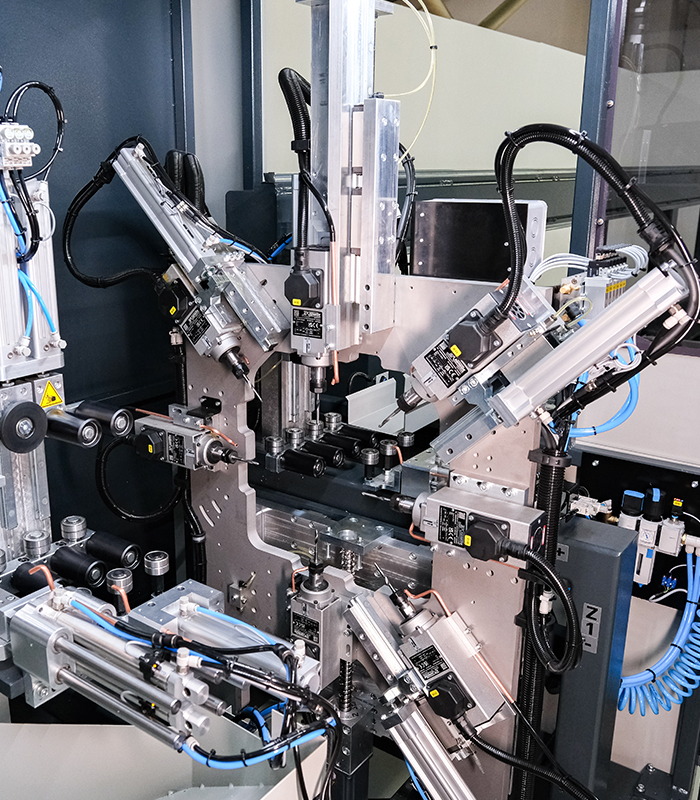

- Saves time by simultaneously opening multiple holes on door profiles, such as door handles, slots by the axis control system on its router unit.
- With the processed profile, 11 pieces can be loaded on the machine. (Max.length 6.5 m)

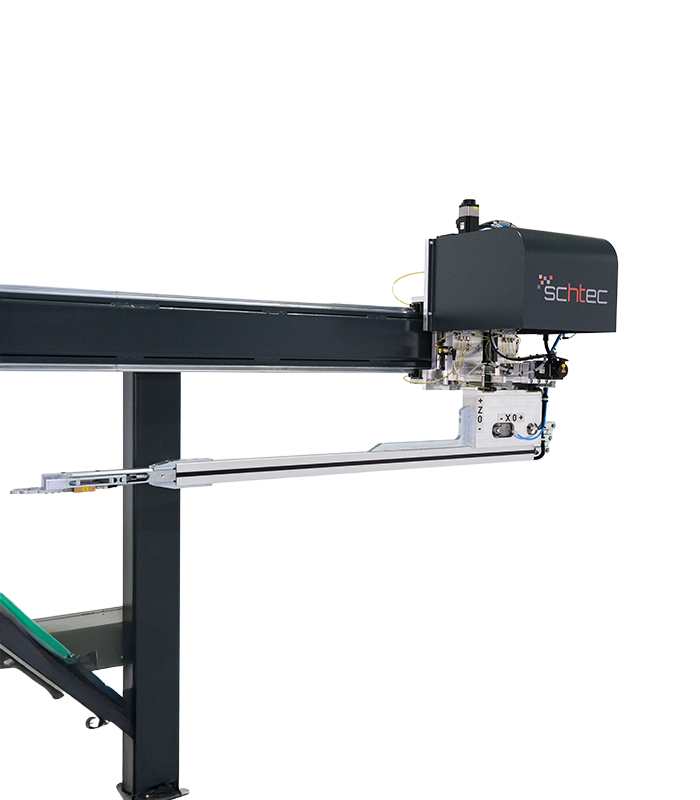

- New design of loading station allow profiles to be loaded simultaneously. This feature saves time from loading process.
- Private HMI software developed by Schtec Software Departmant allows different kinds of window design program data files to be uploaded on machine.
- All alarms and machine faults are displayed on HMI along with solutions
- 15” Touch Screen and high performance industrial PC with Windows XP Embeded system. This system can operate fanless between 0°C and 55°C.
- Industrial PC Based Servo Control System (Beckhoff)
- Online diagnostic and troubleshooting via user friendly interface.
- File transfer by USB or ethernet network and remote desktop connection by WiFi or Ethernet connection
- Central lubrication system reduces the time spent for maintanence
- Automatic dust collection system sucks out all pvc dusts and removes wastes fast with 2 different carriers
- Optimisation option can be enabled for each projects seperately therefore machine make optimisation for waste profiles automatically.
Optional
- Optional screwing station having two screw units allows simultaneous screwing of reinforcement steel and drilling of triple holes for handles via servo controlled axes system.
- For operations which can be done on profiles with a height greater than 120 mm and maximum cutting height, please inquire to us
The SCHTEC SMC 320 is a CNC-controlled machining center integrating cutting, drilling, and milling for PVC and aluminum profiles. With 0.1° saw precision and cutting angles from 30° to 150°, it performs synchronized operations like handle and cylinder holes. It supports up to 6.5 meters in profile length and holds 11 profiles, making it a perfect solution for medium-scale production.
