SMC 305 Aluminium Profile Machining Center
SCHTEC SMC 305: CNC milling, drilling, screwing for PVC profiles up to 4m. 10-profile stack, barcode scanner, dual-servo gantry, 9.8 kW, 15” touchscreen.
SMC 305 Technical Specifications
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Power Consumption | 9.8 kW, 24.5 A |
| Air Pressure | 6-8 bar |
| Air Consumption | 320 l/min |
| Max. Profile Height | 140 mm |
| Min. Profile Height | 45 mm |
| Max. Profile Width | 130 mm |
| Min. Profile Width | 40 mm |
| Maximum Cutting Length | 4,000 mm |
| Minimum Cutting Length | 400 mm |
| Machine Height | 2,300 mm |
| Machine Length | 11,100 mm |
| Machine Width | 3,500 mm |
| Machine Weight | 2,900 kg |
SMC 305 Profile Machining Center
Standard Features
- All milling, drilling, support sheet screwing and marking on PVC profiles are computer controlled and assembled in one machine
- It is controlled by two servo motors that act as gantry of the X axis and operations are performed without the movement of the profile
- Pre-cutted 10 profiles can be stacked (Max.4 mt.)
- Barcode reading system makes it easy to enter profiles and process sequences.

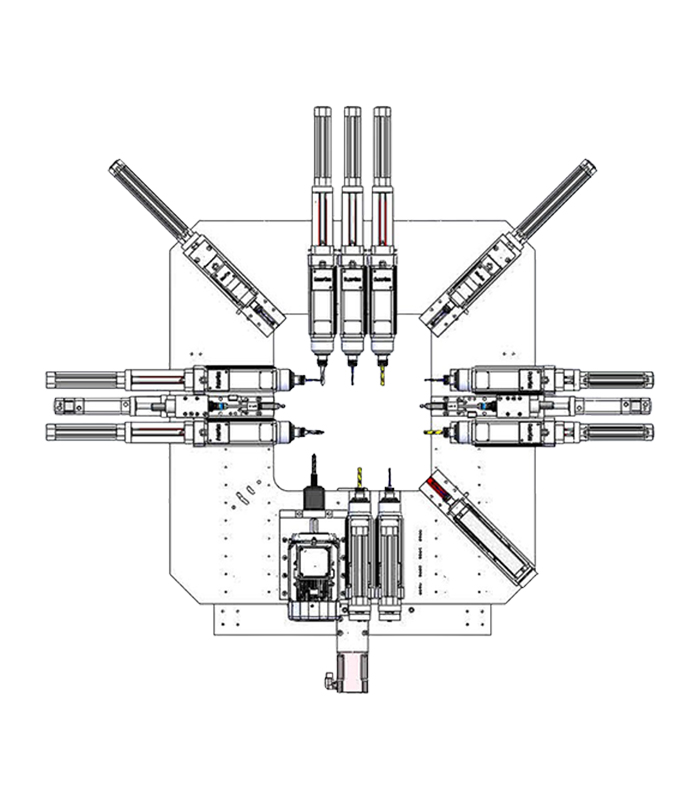

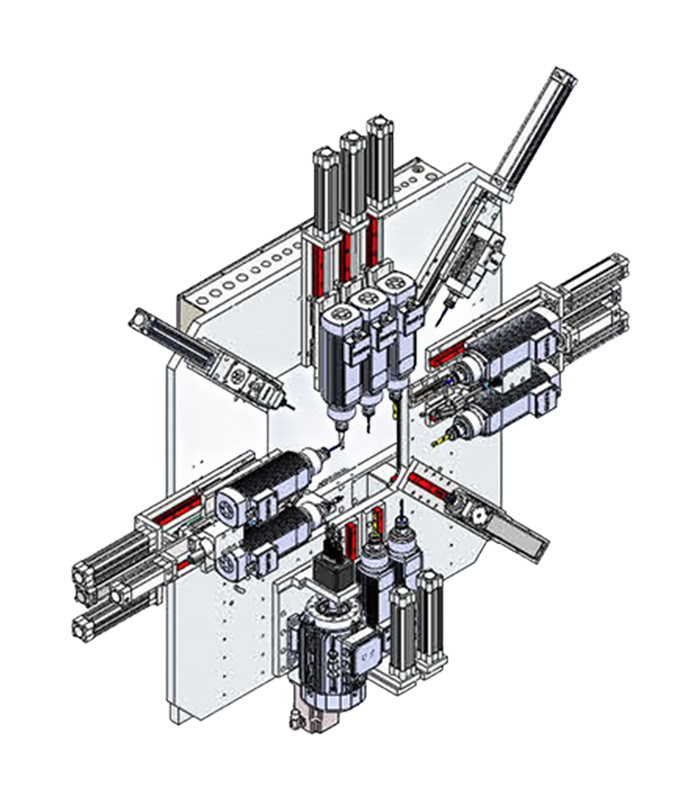

- It makes water drain slots, drilling and milling operations at predetermined fixed angles.
- Automatic reinforcement screwing
- Mounting, triple handle and hinge holes are drilled with reinforcement
- File transfer by USB or ethernet network, remote desktop connection by WiFi or Ethernet connection
- Central lubrication system reduces the time spent on maintanence
- With remote connection method, service and connection to all automation systems to detect and solve problems
- Barcode reader
- Online diagnostic and troubleshooting via user friendly interface.
- All alarms and machine faults are displayed on HMI along with solutions
- 15” Touch Screen and high performance industrial PC with Windows XP Embeded system. This system can operate fanless between 0°C and 55°C.
- Industrial PC Based Servo Control System (Beckhoff)
- Private HMI software developed by Schtec Software Departmant allows different kinds of window design program data files to be uploaded on this machine.
The SCHTEC SMC 305 simplifies production by combining milling, drilling, steel reinforcement screwing, and marking of PVC profiles in one machine. Capable of processing profiles up to 4 meters, it features a 10-profile stacking capacity, ideal for small to medium workshops. With a dual-servo motor gantry X-axis, the profile remains stationary while operations are carried out with high precision. An integrated barcode scanner and automatic job sequence recognition optimize production time. The 9.8 kW motor, centralized lubrication, and Beckhoff-controlled 15” touchscreen offer an efficient and user-friendly production experience.
