RS 225 Profile Screwing Center

Standard Features

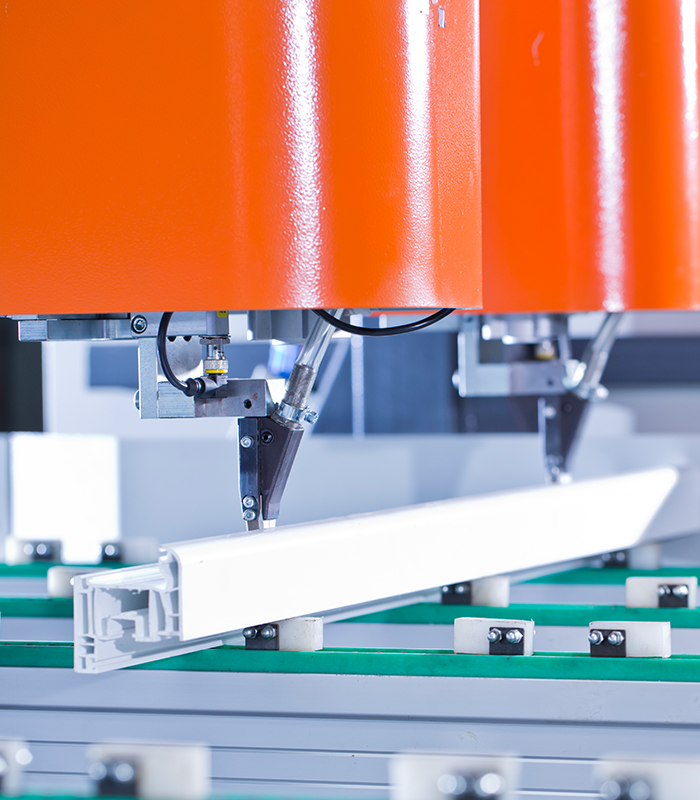

• Screwing operation process done simultaneously by two separate fully automatic screwing axis controlled units
• Machine is fully compatible with Processing center in automatic operation
• Servo controlled automatic positioning with 0.1 mm precision for each screwing position
• Precision positioning at 0.1 mm accuracy by high-speed servo on the holder axis
• Up to 8 pieces can be loaded on to the loading station
• Screwing parameter data bank can be defined by the user for each profile (up to 10,000 profiles)
• All machine axes are moved by hardened steel ball screw and rack-pinion gear system that provides accuracy and durability.
• Data transfer by via ethernet connection, wireless network connection, USB interface or directly through the barcode reader
• All error messages and system status information can be observed on the screen by using the HMI software program developed by the Schtec software department
• Service, trouble shooting and trouble removal can be done by remote connection for the entire system
• Beckhoff brand, high performance industrial PC operated by Windows XP Embedded system. Works between 0°C and 55°C without a fan. 15” touch screen display. (This feature valid when screwing center operates separately from the machining and cutting center)

The Schtec RS 225 is a high-precision production center developed for the automatic screwing of PVC and aluminum profiles. With a servo motor-controlled dual screwing unit, it performs operations simultaneously with 0.1 mm precision, minimizing production time. It supports intensive production lines with a loading capacity for 8 profiles and a memory bank of 10,000 positions. Capable of processing profiles up to 4,500 mm, it offers full automation and a user-friendly experience through its HMI interface.
