MT 250 Automatic End Milling Machine
Discover the SCHTEC MT 250, a compact, high-performance end milling machine for PVC and aluminium transom profiles.
MT 250 Technical Specifications
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Power Output | 1.1 kW |
| Spindle Speed | 3,000 rpm |
| Max. Cutter Diameter | 160 mm |
| Max. Routing Height | 90 mm |
| Max. Routing Depth | 30 mm |
| Max. Profile Width | 120 mm |
| Max. Profile Height | 90 mm |
| Air Pressure | 6-8 bar |
| Air Consumption | 20 l/min |
| Machine Height | 1,240 mm |
| Machine Length | 1,070 mm |
| Machine Width | 860 mm |
| Machine Weight | 125 kg |
MT 250 Automatic End Milling Machine
Standard Features
- End milling of the PVC and Aluminium transom profiles with high quality and precision
- Automatic end milling process
- Two different series of transom profiles can be processed automatically, no time loss, no need to change the settings nor the cutter set
- Vertical and horizontal pneumatic profile clamping system
- Adjustable saw blade feed speed
- Easy working at different angles
Optional
- Cooling system for Aluminium profiles
- Hydro-pneumatic system for Aluminium profiles
The SCHTEC MT 250 is a compact machine designed for fast and precise milling of PVC mullion ends. Its automatic dual-blade system processes various profile types without requiring adjustments. With angled processing up to 45°, pneumatic clamping, and a 1.1 kW motor, it delivers high performance. Ideal for small and medium-sized workshops, the MT 250 ensures production efficiency and consistent quality.
PVC End Milling Machines

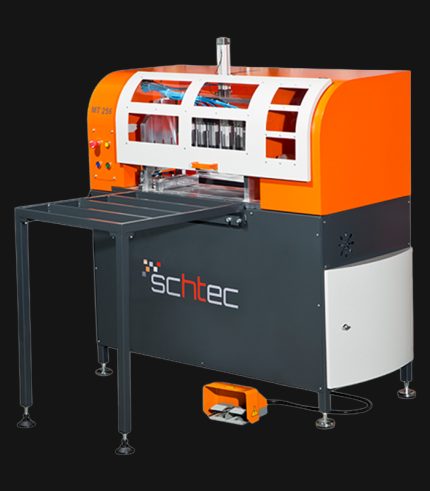

SCHTEC's PVC End Milling Machines deliver 0.1mm precision for window & door profiles. Models MT 250 & MT 256 ensure 30% faster production. Ideal for small workshops to large factories. Get a quote!
FAQ
What is a mullion end milling machine and what is it used for?
SCHTEC mullion end milling machines mill the ends of PVC and aluminum profiles, creating smooth, solid, and aesthetically pleasing joints. Models MT 250 and MT 256 feature automatic positioning and pneumatic clamping to minimize operator errors. These machines enhance assembly quality and reduce material waste in window and door production.
What are the advantages of milling PVC profiles?
Milling PVC profiles smooths the joining surfaces, making assembly easier and improving the visual finish. SCHTEC machines operate with millimeter-level precision, offer 20% energy savings, and support multiple profile types for flexibility. The MT 256 can process up to 6 profiles simultaneously, speeding up production.
Which profiles are compatible with aluminum frame machines?
SCHTEC mullion end milling machines are compatible with all standard PVC and aluminum profiles. The MT 250 features a dual-blade system that requires no adjustments, while the high-capacity MT 256 handles various profile sizes and types with precision and quick changeover.
How is the SCHTEC mullion milling machine installed?
SCHTEC provides on-site installation and operator training after delivery. Supported by our 7-person service team from a 9,000 m² facility, the machines feature centralized lubrication and sensor-assisted systems for low maintenance. With 24/7 technical support, SCHTEC ensures uninterrupted production.
