SS 110 Single Head PVC & Aluminium Cutting Machine
SCHTEC SS 110: Compact single-head machine for precise PVC & aluminum cutting, 20°-160° angles, 500 mm blade, 3 kW motor, ideal for small workshops.
SS 110 Technical Specifications
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Total Power | 3 kW |
| Diameter of Saw | 500 mm |
| Spindle Speed | 2,800 rpm |
| Air Pressure | 6-8 bar |
| Air Consumption | 90 l/min |
| Machine Height | 1,360 mm |
| Machine Length | 1,100 mm (7,000 mm with conveyor) |
| Machine Width | 960 mm |
| Machine Weight | 430 kg |
SS 110 Single Head Cutting Machine
Standard Features
- It cuts Aluminum and PVC profiles.
- Pneumatic undercut 500 mm. saw blade.
- Adjustable saw speed.
- Wide angle range from 20° to 160°
- Special fixing points for easy adjustment at 20°, 30°, 45°, 90°, 135°, 150° and 160° angles.
- Vertical pneumatic clamping pistons will fix profile in the best way.
- Right-Left profile support conveyor is provided as standard
Optional
- Cooling system to cut Aluminium profiles
- Automatic Digital Measurement System
The SCHTEC SS 110 is a compact single-head processing machine ideal for cutting PVC and aluminum profiles at a wide range of angles from 20° to 160°. It features a 500 mm saw blade that rises from below and preset angle stops for fast and safe operation. With a pneumatic vertical clamping system, adjustable processing speed, and a 3 kW motor, it offers an efficient machining experience for small and medium-sized workshops. Its right-left conveyor integration ensures a user-friendly setup, making it a powerful entry into professional production.
Cutting Machines
SCHTEC's PVC & Aluminium Cutting Machines: 0.1mm precision, 6.5m profiles. Reduce waste with CNC automation. Get a quote now!
FAQ
What is a PVC processing machine and what is it used for?

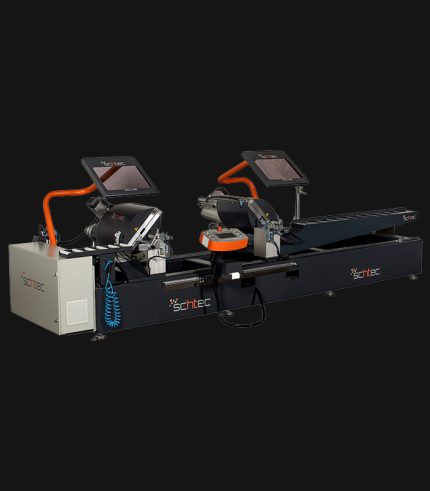

SCHTEC PVC processing machines cut and shape PVC and aluminum profiles with 0.1 mm precision. Models like the DCA 440 and SG 100 are used in the window, door, furniture, and automotive industries. With carbide-tipped saw blades and synthetic cutting fluids, they deliver smooth surfaces.
What are the advantages of an aluminum profile cutting machine?

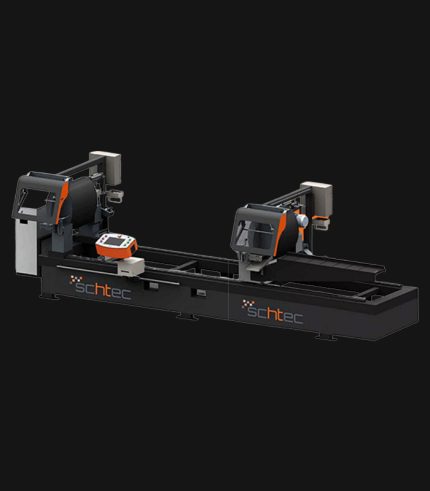

SCHTEC aluminum cutting machines offer 20% energy savings with the servo-controlled system of the DCA 435. The SS 110 provides flexibility with 20°–160° angle cuts. Used in over 65 countries, these machines optimize production with high speed and CE-certified safety.
Which profiles are compatible with a glazing bead cutting machine?
SCHTEC glazing bead cutting machines (SG 100, SG 110) cut PVC glazing bead profiles with 45° precision. Thanks to dual-profile cutting and an adjustable mold system, they are compatible with all standard profiles. Full automation is available with the MA 270 and MD 272 models.
How is a SCHTEC processing machine installed?
SCHTEC provides on-site installation and operator training after delivery. Our 7-person service team, based at our 9,000 m² facility, offers 24/7 technical support. With CE-certified machines and regular blade maintenance, we ensure uninterrupted production.
