SD 140 Double Head PVC & Aluminium Cutting Machine
SCHTEC SD 140: Precise PVC & aluminum cutting, 45°-90° angles, 500 mm blades, 8.5 kW power, linear rail system, and ergonomic design for efficient production.
SD 140 Technical Specifications
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Total Power | 8.5 kW / 21.25 A |
| Power Output of Each Motor | 2.2 kW |
| Spindle Speed | 3,000 rpm |
| Max. Cutting Length | 4,500 mm (Up to 6,500 mm with software support) |
| Min. Cutting Length | 500 mm (Up to 450 mm with software support) |
| Air Pressure | 6-8 bar |
| Air Consumption | 50 l/min |
| Machine Height | 1,800 mm |
| Machine Length | 5,850 mm |
| Machine Width | 1,595 mm |
| Machine Weight | 1,000 kg |
SD 140 Automatic Double Head Cutting Machine
Standard Features
- High precision cutting of PVC and Aluminium profiles
- Strong construction, lineer rail and sliding-bearing system for precise length and angle.
- The saw heads tilt automatically for 45° and 90° cutting and easy manual fixation for Intermediate angles
- Two pieces of 80mm. dropper sash profiles can be cut by means of 500 mm saw blade in the same time
- Easily adjustable blade cutting speed
- Data transfer via local network connection or USB port
- Profile support system to balance of the work piece
- Ergonomic design for ease of use
- Self-closing protective hoods for work safety
- Vertical and horizontal pneumatic profile clamping system for the best fixation
- The left head of the machine is fixed and the right head moves on the chassis
Optional
- Barcode printer system
- Cooling system to cut Aluminium profiles
- Hydro-pneumatic system to cut Aluminium profiles
- Automatic Aluminium wedge cutting system
The SCHTEC SD 140 is a versatile automatic double-head machine developed for the precise cutting of PVC and aluminum profiles. Its 500 mm saw blade enables simultaneous cutting of double-wing profiles with 80 mm drip edges. Featuring a linear rail system, a rigid frame, and horizontal-vertical pressure pistons, it delivers smooth and long-lasting operations. It supports fixed angles between 45° and 90° as well as manual intermediate angles. With a secure structure and 8.5 kW motor power, the SD 140 ensures maximum control and efficiency in production processes.
Cutting Machines
SCHTEC's PVC & Aluminium Cutting Machines: 0.1mm precision, 6.5m profiles. Reduce waste with CNC automation. Get a quote now!
FAQ
What is a PVC processing machine and what is it used for?
SCHTEC PVC processing machines cut and shape PVC and aluminum profiles with 0.1 mm precision. Models like the DCA 440 and SG 100 are used in the window, door, furniture, and automotive industries. With carbide-tipped saw blades and synthetic cutting fluids, they deliver smooth surfaces.
What are the advantages of an aluminum profile cutting machine?

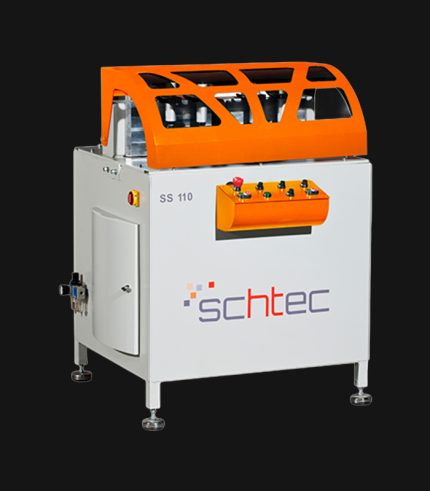

SCHTEC aluminum cutting machines offer 20% energy savings with the servo-controlled system of the DCA 435. The SS 110 provides flexibility with 20°–160° angle cuts. Used in over 65 countries, these machines optimize production with high speed and CE-certified safety.
Which profiles are compatible with a glazing bead cutting machine?

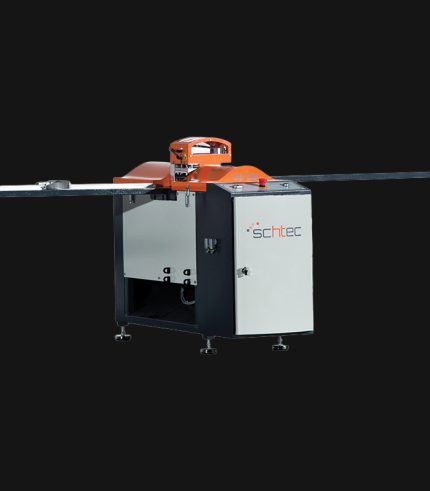

SCHTEC glazing bead cutting machines (SG 100, SG 110) cut PVC glazing bead profiles with 45° precision. Thanks to dual-profile cutting and an adjustable mold system, they are compatible with all standard profiles. Full automation is available with the MA 270 and MD 272 models.
How is a SCHTEC processing machine installed?
SCHTEC provides on-site installation and operator training after delivery. Our 7-person service team, based at our 9,000 m² facility, offers 24/7 technical support. With CE-certified machines and regular blade maintenance, we ensure uninterrupted production.
