DCA 440 Automatic Double Head Aluminum & PVC Cutting Machine
SCHTEC DCA 440: Servo-controlled aluminum cutting machine with 0.1 mm precision, 22°-158° angles, 6.5m length, 600 mm blades, and Beckhoff automation.
DCA 440 Technical Specifications
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Total Power | 7,2 kW |
| Power Output of Each Motor | 3 kW |

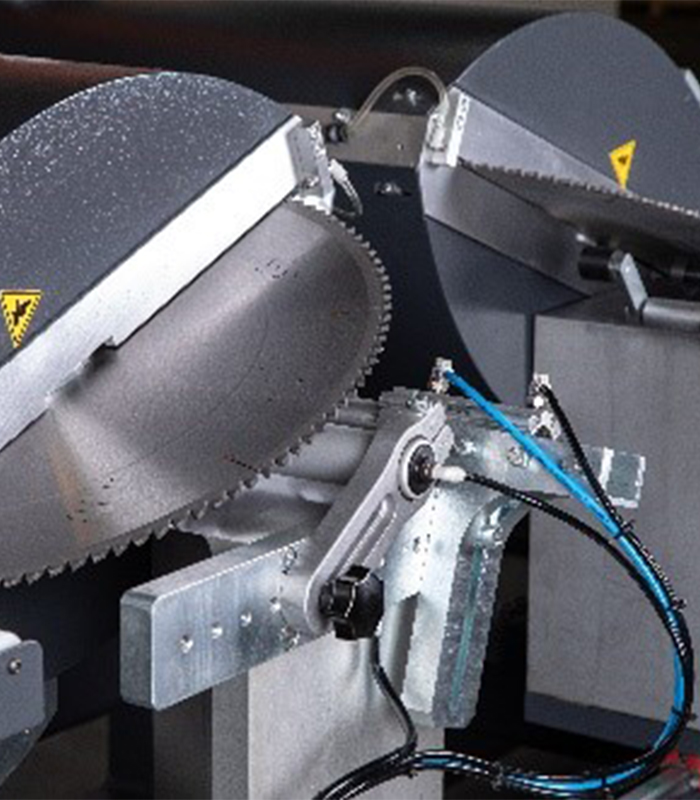

| Diameter of Saw Blade | 600 mm |
| Saw Blade Speed | 2,800 RPM (revolutions per minute) |
| Cutting Length | 250 mm - 6.500 mm |
| Air Pressure | 6-8 bar |
| Air Consumption | 60 L/min |
| Machine Height | 1.935 mm |
| Machine Length | 8.100 mm |
| Machine Width | 1.950 mm |
| Machine Weight | 2.650 kg |

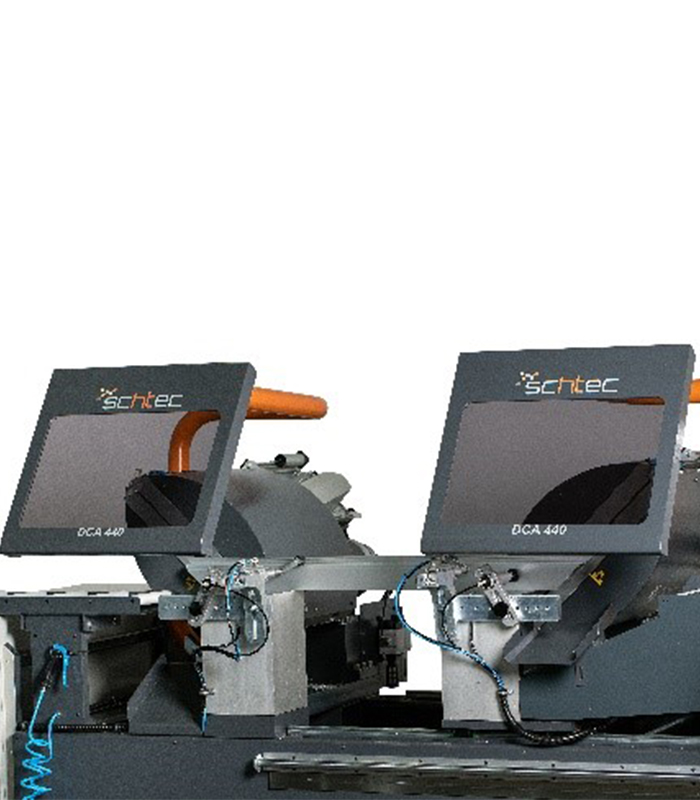

DCA 440 Automatic Double Head Aluminum Cutting Machine
Standard Features

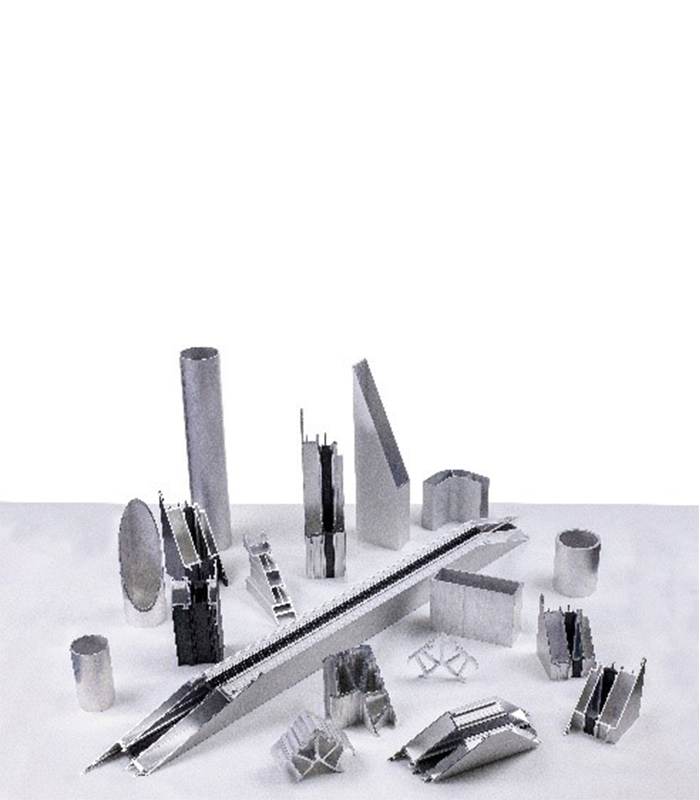

- Cutting of Aluminum profiles with high speed and precision thanks to 3-axis servo system
- Strong construction, lineer rail and sliding-bearing system for precise length and angle
- Industrial PC Based Servo Control System, 10 touch screen (Beckhoff)
- Ethercat based controlled drivers and high-torque servo motors
- Remote desktop connection by way of Wifi or Network connection
- File transfer via USB or Network
- Central lubrication system
- All error messages can be seen on the machine screen with the interface program which developed by SCHTEC Software R&D Department.
- Remote connection method and problem detection and solution by connecting to all automation system
- High angle accuracy thanks to cycloid gap free gearbox
- Profile height automatically transferred from profile data
- Automatic aluminum corner block cutting
- Cooling system to cut Aluminium profiles
- Hydro-pneumatic system to cut Aluminium profiles
- The saw heads tilt automatically between 22° and 158° by servo motors
- Machine can make single cuts
- Adjustable saw cutting speed
- Profile support conveyor is available on the machine as standard
Optional Features
- Barcode printer system
- Additional 2-axis servo system for 5-axis saw cutting motion
The SCHTEC DCA 440 is a servo-controlled double-head processing machine designed for aluminum profiles, capable of performing operations at angles between 22° and 158° with 0.1 mm precision. It features a 600 mm saw blade, a 3-axis servo system, and a hydro-pneumatic drive for rigid and error-free machining. With a processing length of up to 6.5 meters, a 10” touchscreen, and Beckhoff software, it ensures full automation. An ideal solution for high performance, energy efficiency, and flexible production.
Cutting Machines
SCHTEC's PVC & Aluminium Cutting Machines: 0.1mm precision, 6.5m profiles. Reduce waste with CNC automation. Get a quote now!
FAQ
What is a PVC processing machine and what is it used for?
SCHTEC PVC processing machines cut and shape PVC and aluminum profiles with 0.1 mm precision. Models like the DCA 440 and SG 100 are used in the window, door, furniture, and automotive industries. With carbide-tipped saw blades and synthetic cutting fluids, they deliver smooth surfaces.
What are the advantages of an aluminum profile cutting machine?
SCHTEC aluminum cutting machines offer 20% energy savings with the servo-controlled system of the DCA 435. The SS 110 provides flexibility with 20°–160° angle cuts. Used in over 65 countries, these machines optimize production with high speed and CE-certified safety.
Which profiles are compatible with a glazing bead cutting machine?
SCHTEC glazing bead cutting machines (SG 100, SG 110) cut PVC glazing bead profiles with 45° precision. Thanks to dual-profile cutting and an adjustable mold system, they are compatible with all standard profiles. Full automation is available with the MA 270 and MD 272 models.
How is a SCHTEC processing machine installed?
SCHTEC provides on-site installation and operator training after delivery. Our 7-person service team, based at our 9,000 m² facility, offers 24/7 technical support. With CE-certified machines and regular blade maintenance, we ensure uninterrupted production.
