CM 620: High-Speed CNC Corner Cleaning Machine
Schtec CM 620: High-speed CNC for automatic PVC corner cleaning. 2-axis servo ensures precision on white/colored profiles. 400+ frames/hr for large lines.
CM 620 Technical Specifications
| Machine Name | CM 620 CNC Corner Cleaning Machine |
| Voltage | 400 V AC, 3 P, 50/60 Hz |
| Power Consumption | 7 kW, 18 A |
| Air Pressure | 6–8 bar |
| Air Consumption | 110 lt./min |
| Saw Blade Details | Ø 250 x Ø 30 x 3.2 mm, Z=80 |
| Saw Blade rpm | 5,200 rpm |
| Drillers rpm | 14,000 rpm |
| Max. Axes Speed | 45 m/min |
| Max. Outer Frame Dimension | Limitless (Automatic Mode: 2,300 x 2,300 mm) |
| Min. Outer Frame Dimension | 380 x 380 mm (Automatic Mode: 450 x 450 mm) |
| Max. Profile Height | 160 mm (depending on the profile type, different regions can be cleaned) |
| Min. Profile Height | 35 mm |
| Max. Profile Width | 130 mm |
| Machine Height | 1,900 mm |
| Machine Length | 2,150 mm |
| Machine Width | 1,250 mm |
| Machine Weight | 960 kg |
| Tool Count | 12 pieces |
| Capacity | 400–440 frames / 8 hours (based on one corner cleaning time) |
| Size | UK | US | EU | Japan |
| XS | 6 - 8 | 4 | 34 | 7 |
| S | 8 -10 | 6 | 36 | 9 |
| M | 10 - 12 | 8 | 38 | 11 |
| L | 12 - 14 | 10 | 40 | 13 |
| XL | 14 - 16 | 12 | 42 | 15 |
| XXL | 16 - 28 | 14 | 44 | 17 |

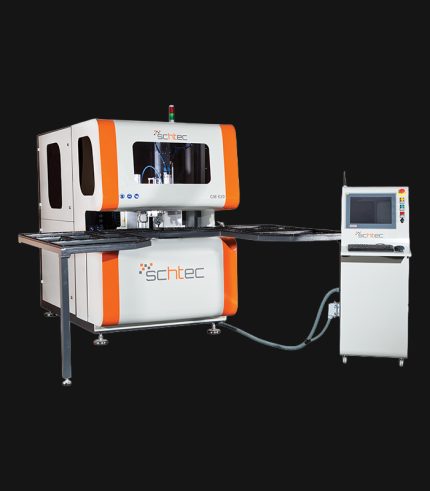

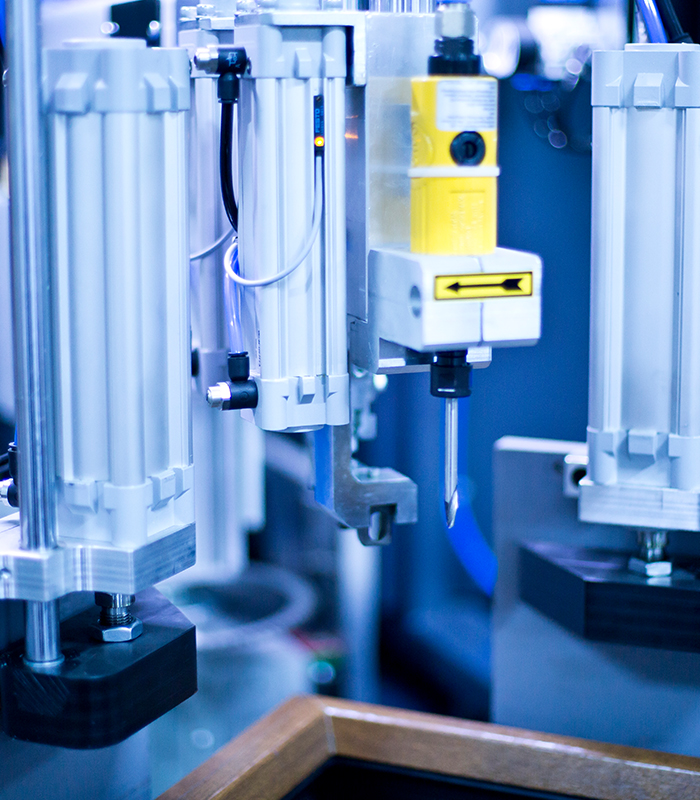

CM 620 CNC Corner Cleaning Machine
Standard Features
- High speed and accuracy corner cleaning with Servo System controlled 2 Axes
- Automatic knife selection for selected profile foil type (colour / white)
- High quality corner cleaning result through durable special knife and bit designs
- High quality cleaning results on surfaces by automatic measurement system
- Industrial PC Based Control System (Beckhoff)
- Remote desktop connection by way of Wifi or Network connection
- File transfer by USB or network

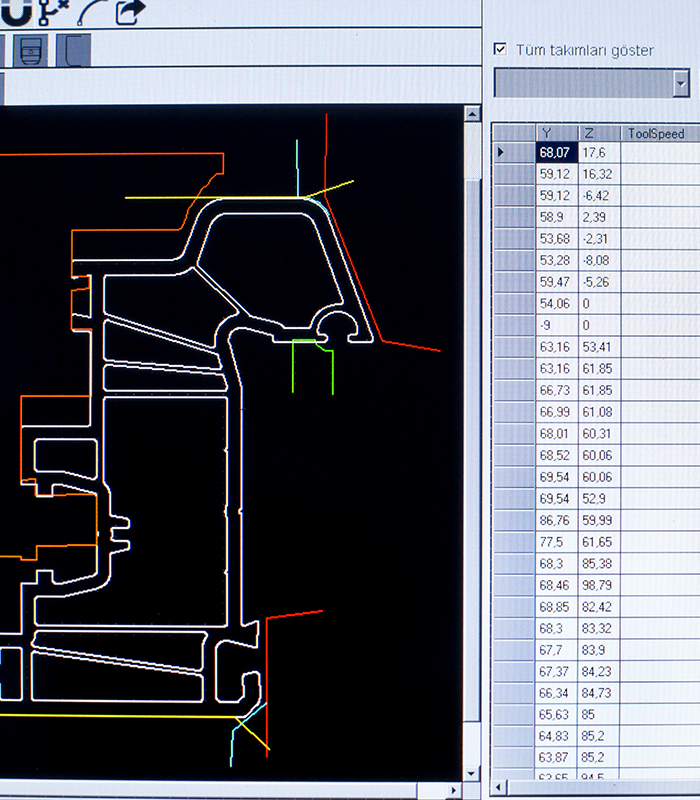

- Easy programming support via DXF,DWG file extensions
- Central lubrication system for all bearings, axis and sliding bearings
- 15” TouchScreen
- High performance industrial PC working between 0C – 55C with operating system Windows XP Embedded and fanless design
- All alarm sand messages can shown on the machine interface by way of software which developed by SCHTEC Software R&D Department.
- By way of using private remote desktop connection, which developed by SCHTEC Software R&D Department, expert service technicians can connect true machine automation system and machine interface for fixing or determine problems.
Optional
- Additional tool for sliding frames inside surface cleaning
- Additional tool for monoblock frames inner surface cleaning

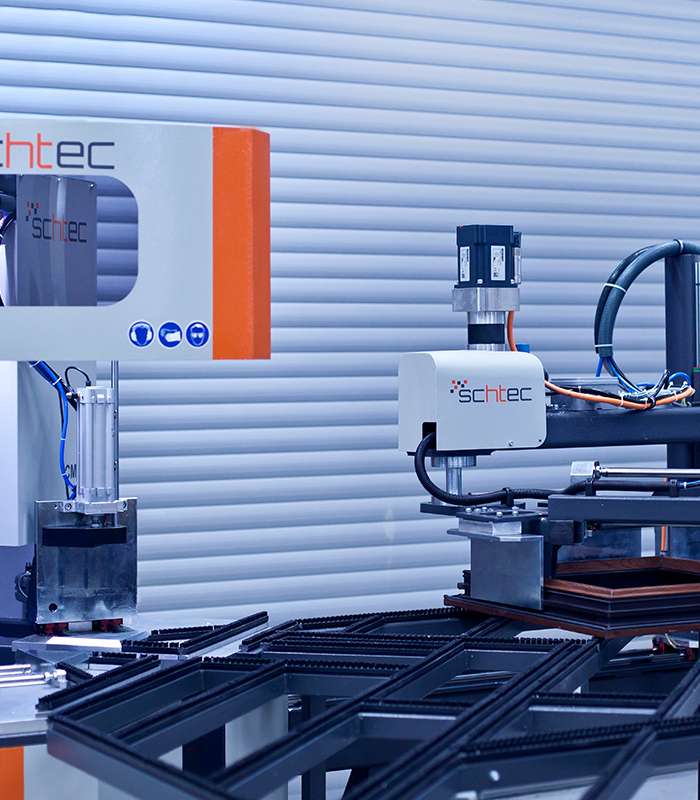

- Expanding to Single Line by way of connection to 4 point welder with 2 Axes robotic design turning table.
- Earning 12 m² on working area with benefit of the brand new design turning table placed on the corner of the line
H2:Technical Specifications
The Schtec CM 620 is a high-speed CNC machine developed for automatic corner cleaning in PVC window and door production. It features a 2-axis servo system and delivers precise surface cleaning for both white and colored profiles. With an automatic measurement system and DXF/DWG programming support, it offers a user-friendly and efficient operation. With a production capacity of 400+ frames per hour, it is suitable for integration into large-scale production lines.
