SA 280: Precision Sash Assembly Station
Schtec SA 280 automatically installs tilt-and-turn PVC accessories with high precision. Mold-less, auto centering, laser screwing. Boosts efficiency.
SA 280 Technical Specifications
| Total Power | 3 kW |
| Air Pressure | 6–8 bar |
| Air Consumption | 245 lt./min |
| Minimum Window Width | 330 mm |
| Maximum Window Width | 2,500 mm |
| Machine Height | 2,030 mm |
| Machine Length | 3,255 mm |
| Machine Width | 2,010 mm |
| Machine Weight | 615 kg |
SA 280 Sash Assembly Station
Standard Features
Different series of different sizes of doors / windows, all used tilt and turn accessories on the surface of the frame without using the meter and pen, adjustable to different profiles, without the need to form and pattern, enables serial and high-quality installation in a standard way
- Sash assembly table

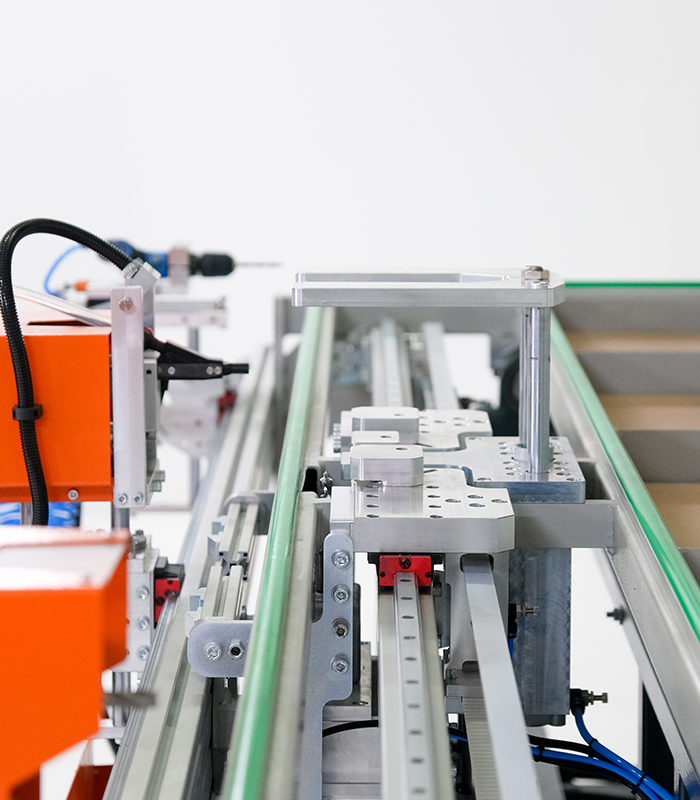

- Automatic centering system of the sash
- Automatic measurement system for espagnolette and scissors

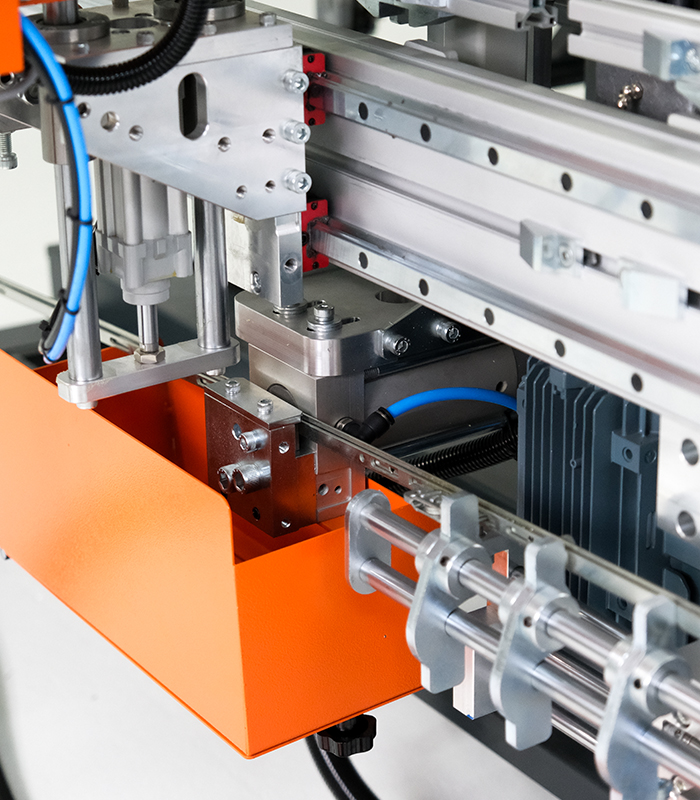

- Cutting punch for espagnolette and scissors

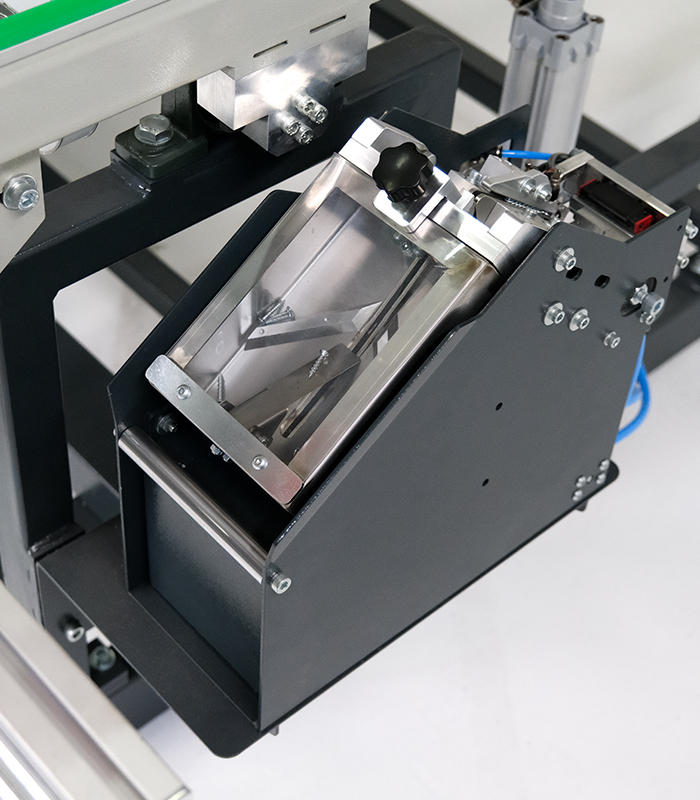

- The automatic screwdriver, automatic screw feeding

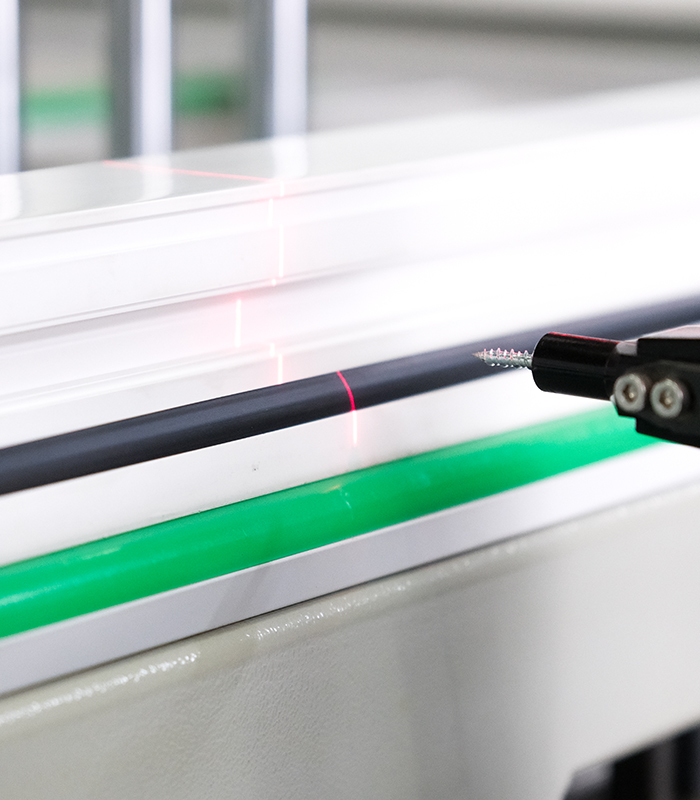

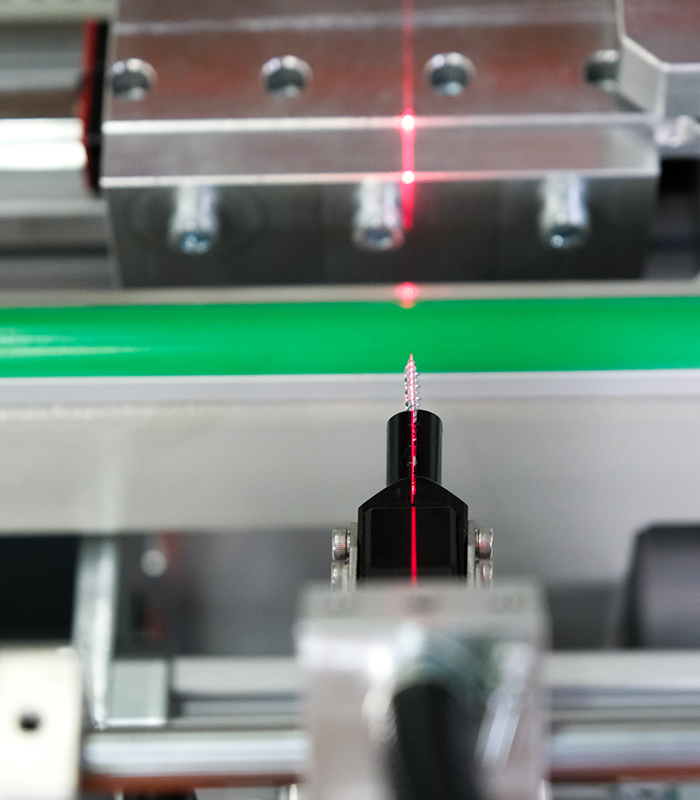

- Laser screw alignment system

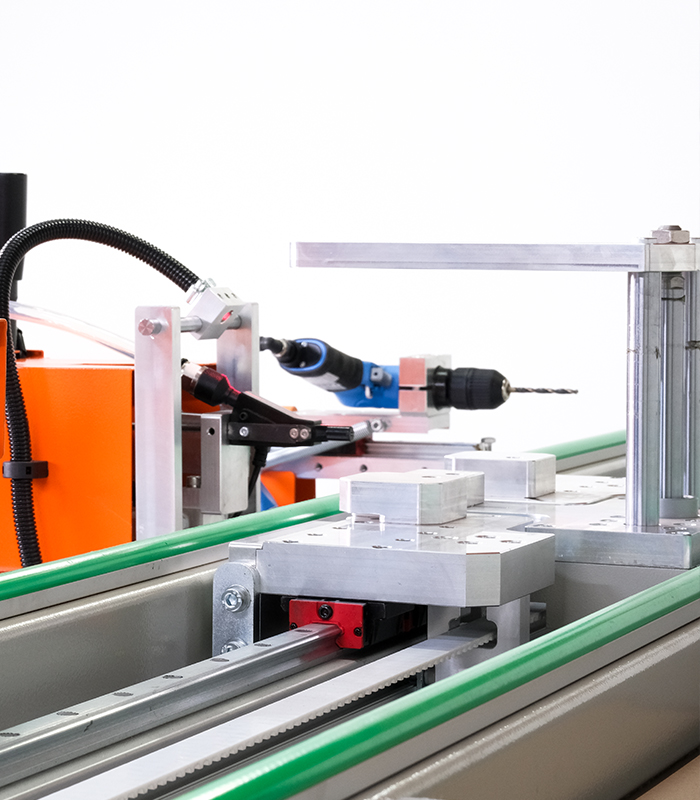

- Triple drilling holes for the handle

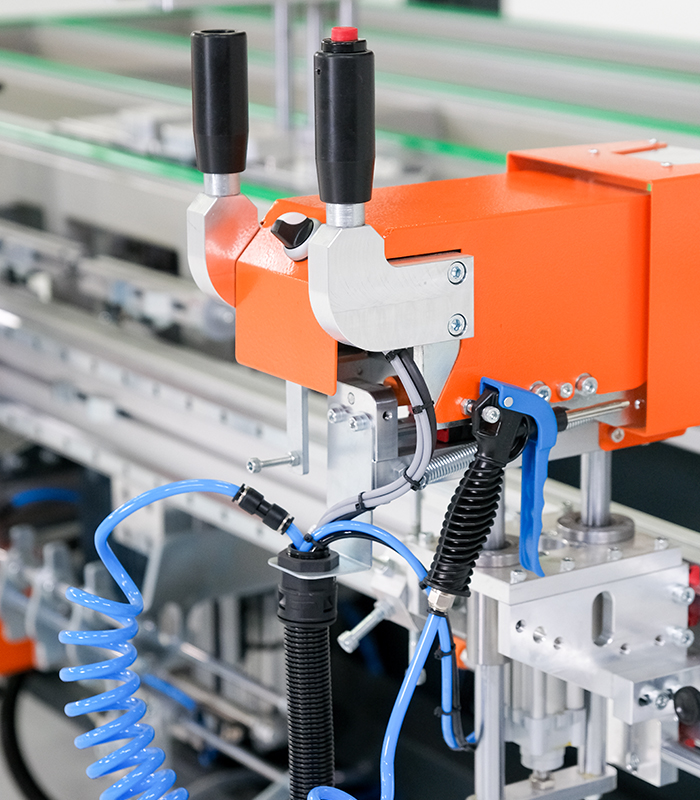

- Semi automatic adjustable hinge drilling and manual hinge drilling
- Screwing group

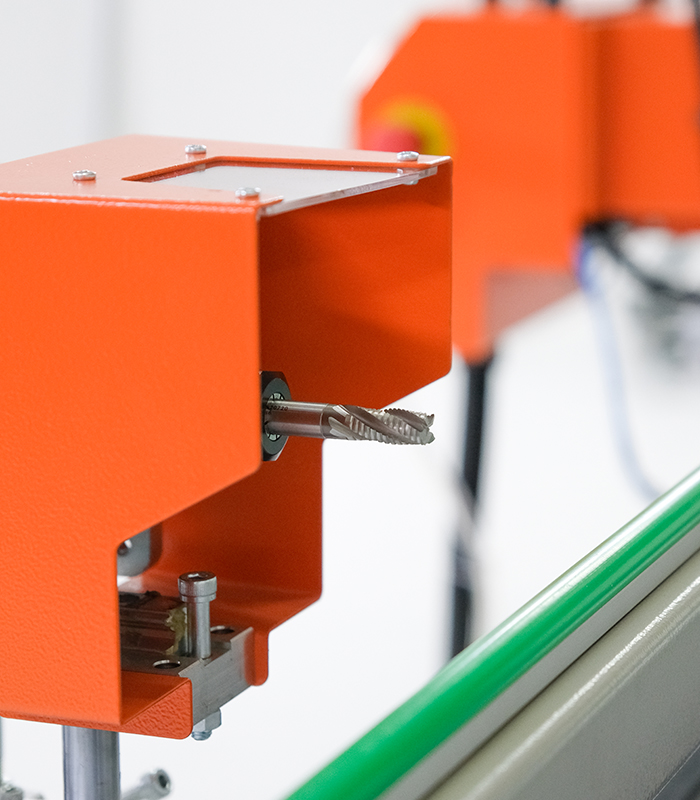

- Milling channel for espagnolette

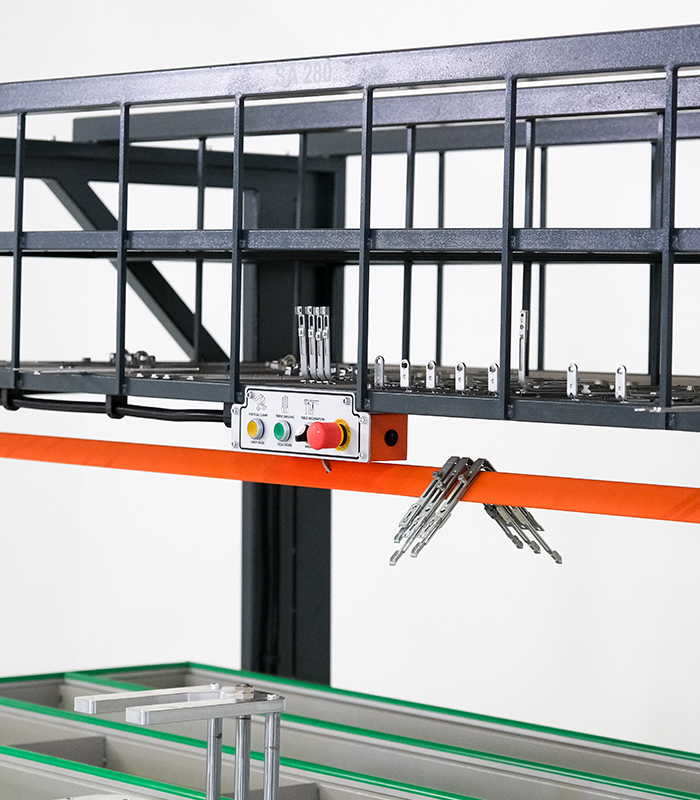

- Shelf for accessories
The SCHTEC SA 280 is a professional machine designed to automatically install tilt-and-turn accessories onto PVC window and door sashes without molds and with high precision. It supports sash sizes from 330 mm to 2.5 m and includes features such as automatic centering, espagnolette and stay measurement, laser-assisted screwing, and triple handle hole drilling.
Powered by a 3 kW motor and weighing 615 kg, the SA 280 delivers high performance. Its automatic screw feeding and semi-automatic hinge drilling minimize operator errors and reduce production time. Engineered by SCHTEC, this machine ensures standardized quality and maximum efficiency in sash accessory assembly.
PVC Accessory Assembly Machines - Glass & Sash
Enhance your PVC window & door production with SCHTEC’s Accessory Assembly Machines. Automate glass and sash mounting with GA 300 & SA 280. Fast, precise, and reliable. Request a quote now!
FAQ
What is an accessory assembly machine and what does it do?
SCHTEC accessory assembly machines automate the installation of components such as glass, espagnolettes, stays, and hinges onto PVC window and door frames. The GA 300 automates glass mounting, while the SA 280 installs sash accessories without molds. Laser alignment ensures precision and provides up to 40% time savings.
What are the advantages of a PVC window glass mounting machine?

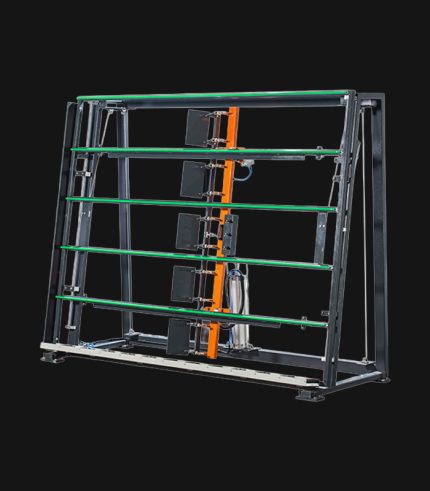

The SCHTEC GA 300 automates glass mounting for frames up to 2.7 meters, offering error-free placement through parallel pressing. It increases production speed by 40% and reduces energy use with low air consumption. Widely used in over 65 countries, its compact design makes it efficient even in small workshops.
Which accessories are compatible with the sash assembly machine?
The SCHTEC SA 280 installs tilt-and-turn accessories (espagnolettes, stays, hinges) on sash sizes from 330 mm to 2.5 m without the need for molds. It features automatic centering and laser-assisted screwing, ensuring compatibility with all standard PVC profiles for flexible and precise assembly.
How is a SCHTEC assembly machine installed?
SCHTEC provides on-site installation and operator training after delivery. Our 7-member service team, based in a 9,000 m² facility, offers 24/7 technical support via remote access and centralized lubrication. CE-certified machines ensure continuous production with low maintenance costs.
