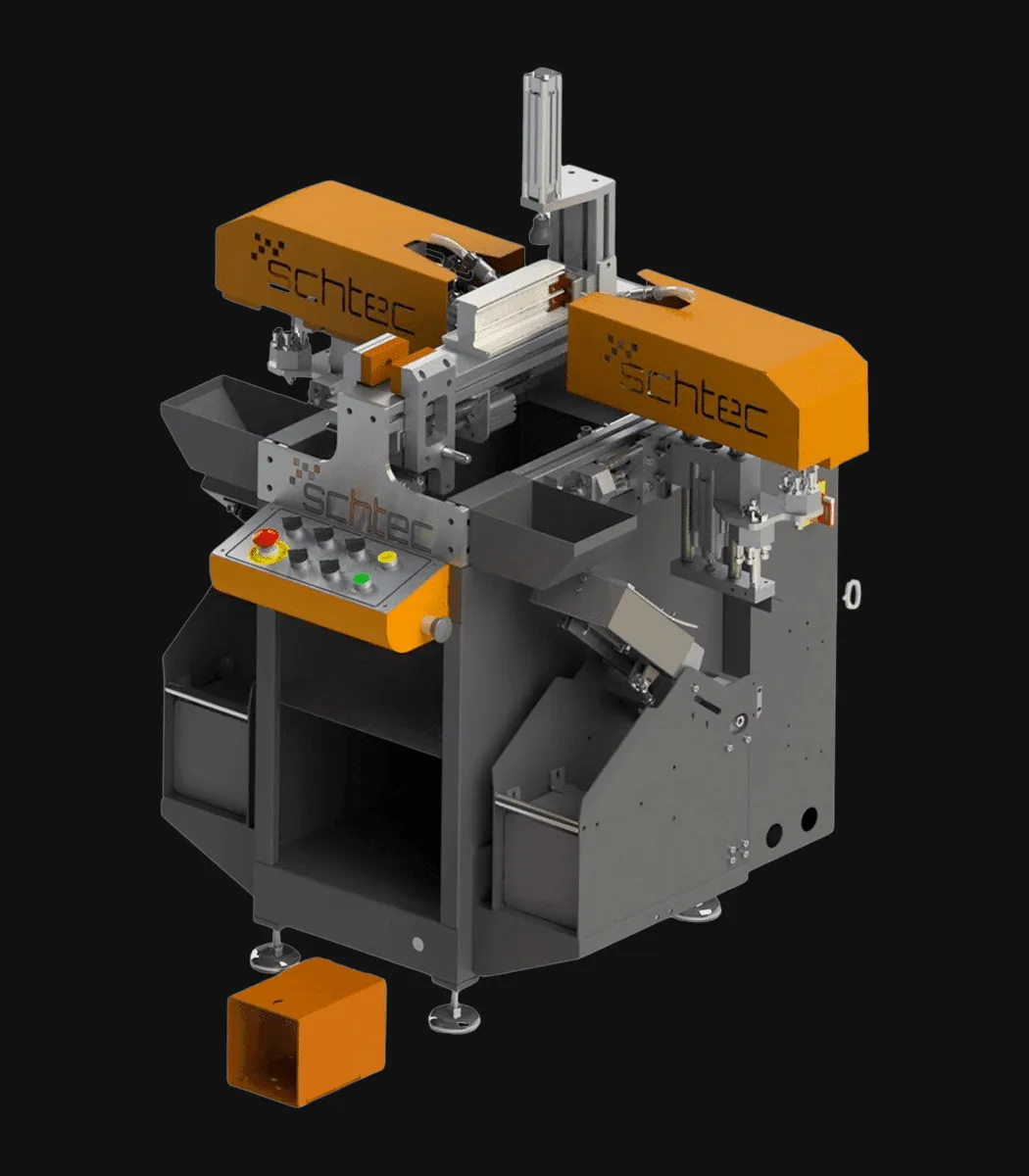

The Schtec RT 176 Automatic Mullion Connector Screwing Machine

RT 176 Automatic Mullion Connector Screwing Machine

Name: RT 176 Automatic Mullion Connector Screwing Machine
Brand: Schtec
SKU: RT-176

Schtec RT 176 screws PVC mullion blocks with dual-sided precision in 5.5 sec. Supports 4 series with easy adjustments for fast, error-free production.

Download Brochure

SKU: RT-176

Category: Screwing & Reinforcement Machines

Automatic screwing of mullion connectors used on different series and sizes of PVC mullion profiles in one time from both sides positioning with settings
Possibility to use 4 types of connector in the same time without change settings
Automatic screwing with double side automatic screw feeding unit
Automatic clamp and profile centering system
Possibility for easy setting and position change
Connector joining speed 5.5 sec./pc.

Product Description

The Schtec RT 176 is a high-efficiency machine that automatically screws connecting blocks into PVC mullion profiles. Capable of working with four different series at once, it screws from both sides simultaneously, enhancing production speed. It delivers error-free performance with dual-sided automatic screw feeding, pressing, and centering mechanisms. The block mounting is completed in approximately 5.5 seconds. Its user-friendly design allows easy position adjustments and quick series transitions. The RT 176 delivers speed, efficiency, and consistency for mullion block installation in PVC window systems.

Frequently Asked Questions

Find quick answers to common questions about our Screwing & Reinforcement Machines.

1. What is the role of screwing & reinforcement machines in PVC profile manufacturing?

Screwing & reinforcement machines are used to securely fasten internal steel reinforcements or mullion connectors into PVC profiles, ensuring structural rigidity and longevity. They reduce manual labor by automating the process of positioning screws precisely at predefined points. In modern lines, these machines often incorporate drilling, feeding, and placement modules to streamline workflow. They help maintain consistent torque values, preventing over‑tightening or under‑tightening, which could compromise frame integrity.

2. What features are important for a high‑quality reinforcement screwing machine?

Key features include automatic screw feeding, profile centering/clamping, servo or pneumatic controlled axes, torque control, adjustable height/stop systems, and safety interlocks. The ability to handle multiple types or sizes of connectors without major retooling is also valuable. Fast changeover between configurations and a memory of parameter sets for different profiles improve efficiency. Reliable construction and tool accessibility reduce downtime and maintenance.

3. How does the RT 176 Automatic Mullion Connector Screwing Machine operate and what are its advantages?

The RT 176 machine screws mullion connectors into PVC profiles automatically from both sides in a single operation. It supports up to 4 connector types simultaneously without needing to change settings. It includes dual‑sided screw feeding, automatic clamping, and profile centering systems. Reported cycle speed is about 5.5 seconds per connector.

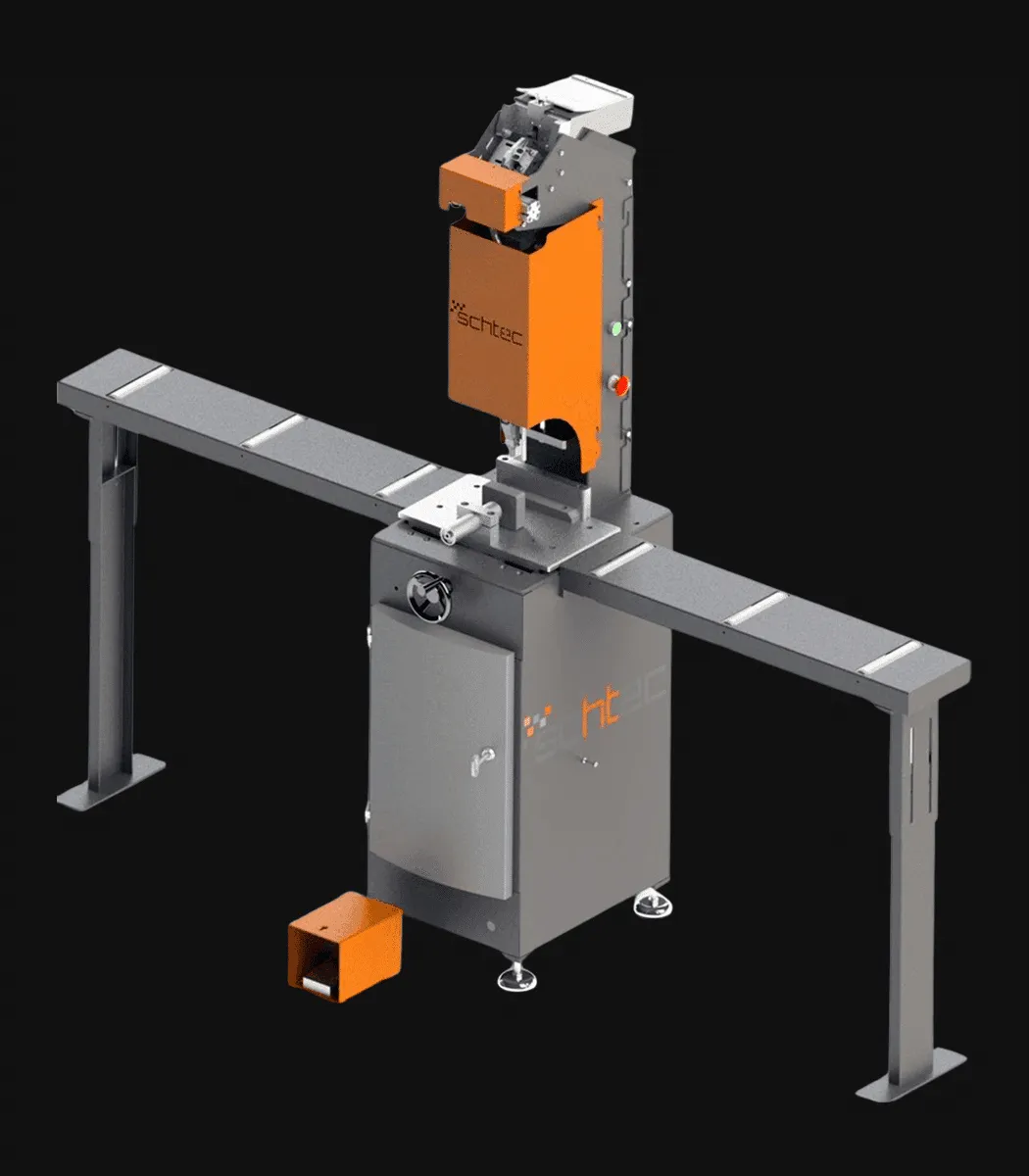

4. What distinguishes machines like RS 171 Vertical Reinforcement/Steel Screwing Machine in this category?

The RS 171 machine features an automatic screw feeding unit, pneumatic pressing hold during screwing, automatic halt after completion, and foot pedal control for operator convenience. It also has height adjustment switches to suit different screw lengths, and adjustable stops supporting various profile widths. Average screwing speed is around 1.5 seconds per piece, indicating high throughput.

5. What maintenance practices ensure reliable operation and longevity of screwing & reinforcement machines?

Keep the screw feeding and dispensing channels clean from dust, chips, or debris to avoid jamming or misfeeds. Regularly inspect and calibrate torque settings, height adjustments, and pneumatic components to maintain accuracy. Lubricate moving axes and exchange worn bits before they degrade screw quality. Check clamps, stops, and sensor systems for wear and alignment. In addition, monitor logs or error messages proactively to catch drift or mechanical issues early.

Power Supply	220V,1P, 50-60Hz
Power Output	1 kW
Air Pressure	6-8 bar
Air Consumption	75 lt./min.
Machine Height	1.560 mm
Machine Length	1.550 mm
Machine Width	915 mm
Machine Weight	185 kg
